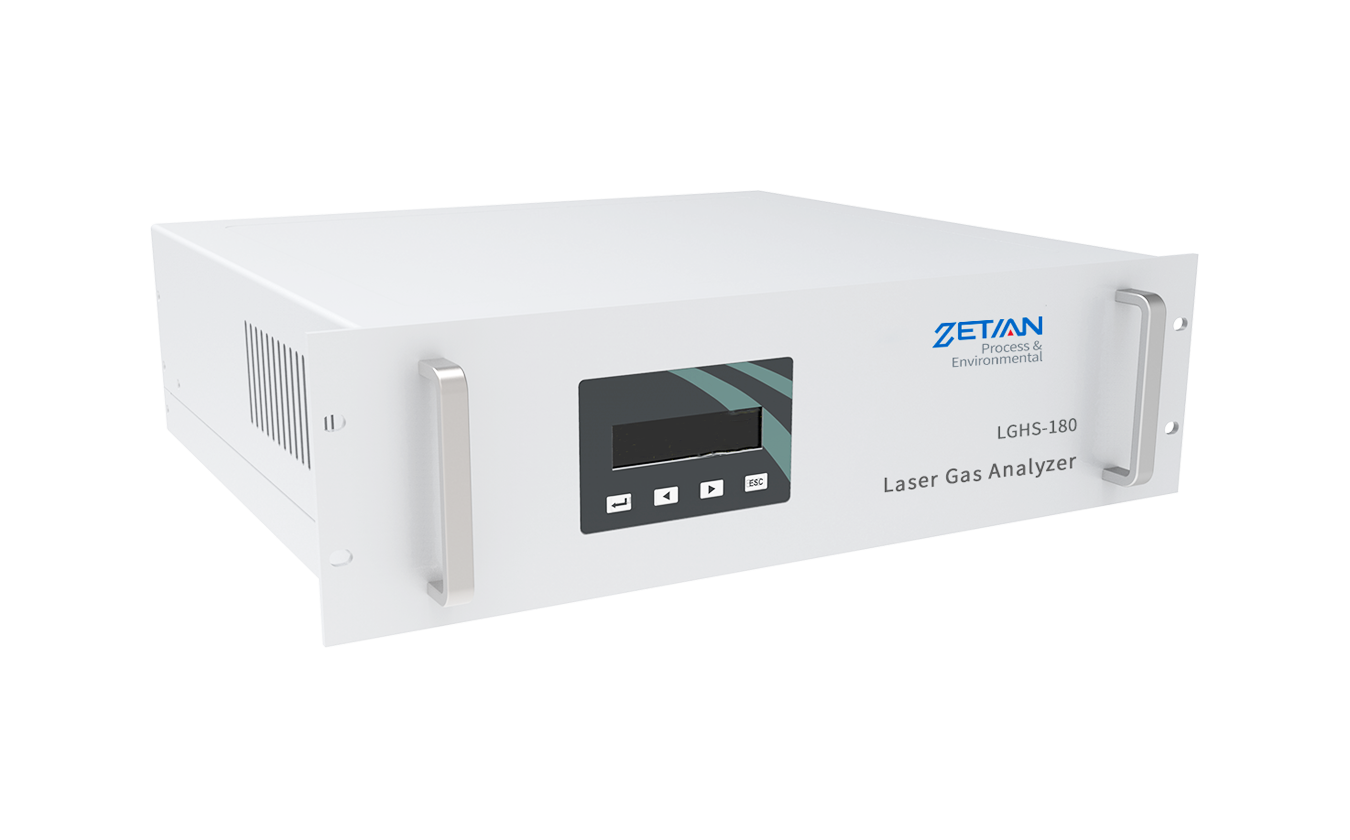

EmailLGT-180 is a kind of panel-mounted tunable laser gas analyzer, which is developed for industrial online analysis and environmental online monitoring. The analyzer adopts white pool to realize the return of optical path. The optical path can reach 25m and the detection limit is low. It can online analyze O2, CO, NH3, CO2, CH4, H2O, HCl, HF, HCN and other gases under various complex working conditions (Note: a single analyzer can only analyze 1~2 components). The measured gas concentration ranges from constant to trace
Features
19-inch 3U panel mounted chassis, compact structure and easy integration.
TDLAS technology is adopted to eliminate cross interference of background gas.
Multiple Reflection Optical Path technology: the measurement optical path can reach up to 25m, significantly improving the detection limit.
No optical moving parts, high reliability, free from field vibration.
Application
Analysis of coal gas and metallurgical furnace gas; petrochemical and chemical refining; ; gas analysis in urea chlor-alkali manufacturing process, etc .
Specifications
Linearity error: ≤1%F.S.
Zero drift: ≤1%F.S./half a year
Span drift: ≤1%F.S./half a year
Calibration period: ≤2n/year
Response time: ≤30s (related to working condition).
Analog input: 2x4-20mA input.
Analog output: 2x4-20mA output
Digital communication: RS485/RS232/GPRS
Working temperature: -20℃~60℃
Purge gas: (0.3~0.8) MPa nitrogen, purified instrument air
