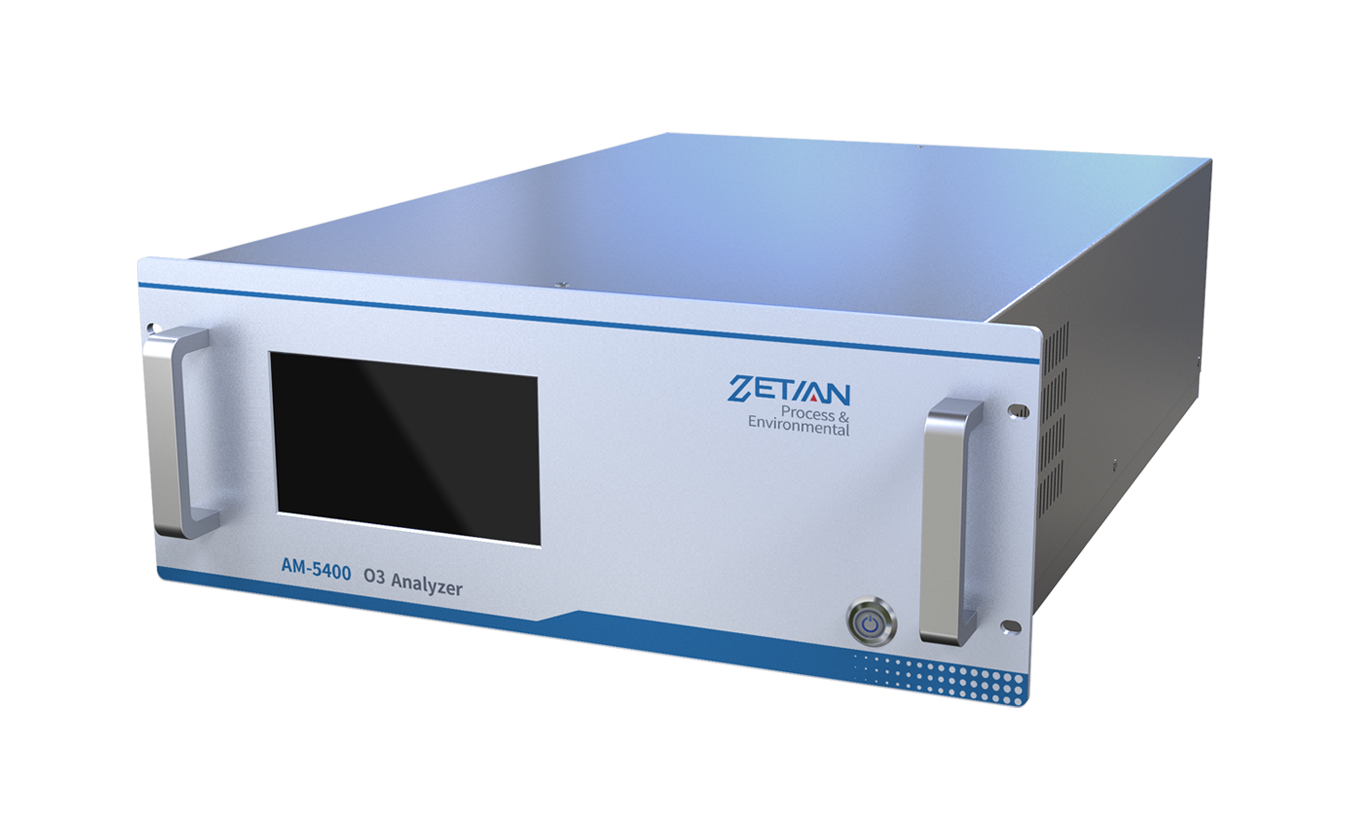

EmailAM-5400 Ozone Analyzer adopts the principle of Ultraviolet Spectrophotometry and combines with advanced Micro-processing Technology to provide accurate and reliable low-concentration O3 detection of 'ppb~ppm' level, which meets application requirements of atmospheric monitoring
Features
Measurement range from 0~500ppb to 0~20ppm, selectable.
Timed dark current compensation, high stability.
Microprocessor realizes multifunctional operations.
Adaptive Signal Filtering Technology optimizes response time.
High sensitivity, high repeatability, simple operation.
The parameters of the instrument can be automatically monitored.
Large capacity memory, store historical data automatically.
Modular structure design, easy replacement and maintenance.
Application
Applied to atmospheric monitoring.
Specifications
Pollutant Content:
SO2:<0.5ppb
NO:<0.5ppb
NO2:<0.5ppb
O3:<0.5ppb
CO:<0.025ppm
Organics:<0.02ppm
Flow output: 20SLPM@30psi
Dew point: -20℃
Pump: external, oil-free, long service life
Dimension: 178mmx430mmx535mm
Weight: 20kg, external air compressor<22kg (optional)
Power: 200V~240V, 50/60Hz, 400W
