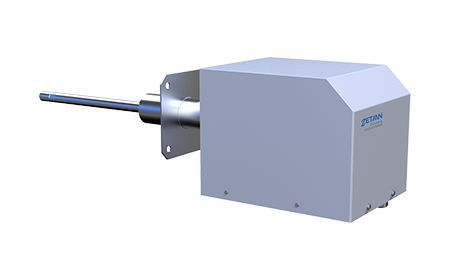

EmailGSP-100 Sampling Probe adopts special design to adapt to multiple working conditions (high temperature, high dust, high humidity and strong corrosion, etc.). It can match with various sampling pipes, filter and heating unit. It owns advantages of large filtering area and capacity, good gas tightness, high filtering precision, dust leak proof design with patent, reliable operation, fast response, convenient installation and maintenance.
Features
Filter uses ceramic material, with high corrosion resistance under condition of high humidity, high temperature and high dust
Special internal structure design, reducing dead zone of sample gas effectively
Filter dust particle larger than 2μm, small gas resistance
Efficient internal external purge design, effectively remove dust and avoid blockage, thus reducing regular maintenance
Applications
The product is suitable for continuous collection of waste gas after combustion, typically applied in t collection of sample gas containing high moisture and dust in flue of power plant and cement production process.
Specifications
Sampling temperature: ≤600℃
Heating temperature of sampling cavity: 120±10℃
Filter precision: 2μm
Temperature control precision: ±0.5℃
Working temperature: -10℃~60℃
Purge gas source: (0.4~0.8) MPa nitrogen or purified instrument air
