    • Measuring points and solutions

      In order to meet the demand of blast furnace injection, it needs to change lump coal into powered coal which size is under 75um. Because pulverized coal is explosive and flammable, safety requirements need to be stricter in the grinding process. Therefore, online monitoring system is required for the grinding process to ensure production safety during the preparation of coal.


      NO. Measurement point Temperature Pressure Measurement components Detection purpose Recommend products*
      1

      Coal pulverizer entrance or hot- blast stove emission gas down stream

      100-350°C Slight positive pressure

      O2: 0-21%CO: 0-3000ppm

      Security monitoring, prevent explosion LGT-100
      2 Coal pulverized down stream 100-350°C / O2: 0-21%CO: 0-3000ppm Security monitoring, prevent explosion LGT-106
      3 Pulverized coal bunker Normal Slight positive pressure O2: 0-21%CO: 0-3000ppm Security monitoring, prevent explosion LGT-106
      4 Bag-type dust collector 200°C / O2: 0-21%CO: 0-3000ppm Security monitoring, prevent explosion LGT-100


    • You May Also Like

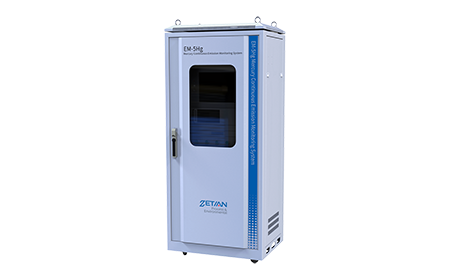

    • EM-5Hg Mercury Continuous Emission Monitoring System

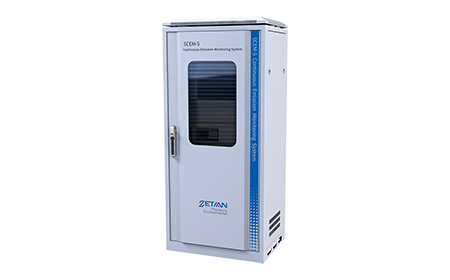

      SCEM-5 Continuous Emission Monitoring System (Ultra-low Hot-wet)

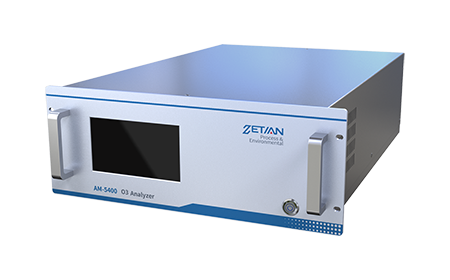

      AM-5400 Ozone Analyzer

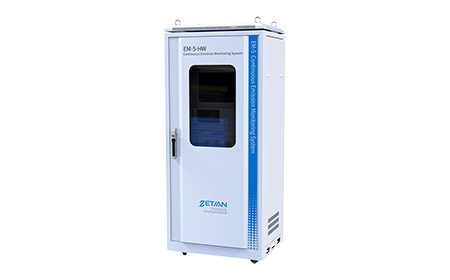

      EM-5-HW Continuous Emission Monitoring System (Hot-wet)
